Square shape bend tubes and U bend tubes

Bent tubes for Shell-and-Tube Heat Exchangers

Pantani Divisione Tubi is specialized in the bending of tubes used in refineries and Oil & Gas, chemical, petrochemical, renewable energy and nuclear plants.
We offer square-shape bend tubes and U-bend tubes for shell-and-tube heat exchangers.
Each tube is bent with precision and attention to detail in order to perfectly fit the specific needs of our customers.
Our expertise and technology enable us to examine even the most complex requests together with you to offer you high-quality, reliable and customized solutions.

Materials

Low-alloy steels
Carbon steel
Stainless steel (austenitic, ferritic, super austenitic)
Duplex alloys
Monel alloys
Nickel alloys
Copper alloys
Titanium alloys

Production Capacity
Dimensional Tolerances
Heat Treatment

Tube Diameter	Wall Thickness	Bending Radius	Straight Leg Length	Tube Length before Bending
9.52 / 31.75 mm 0.37 / 1.25 in	0.70 / 3.40 mm 0.027 / 0.133 in	Min. 1.5 mm x OD 0.06 in x OD	Max. 13300 mm 523.6 in	Max. 30000 mm 1181 in

For different technical specifications, please feel free to contact us. Together we can find the most suitable solution.

Our company meets the generally required standards for determining U-bend tolerances, namely:

ASTM A556/556M
ASTM B395/B395M
ASTM A688/688M
ASTM A803/803M
TEMA Section 5 § RCB 2.31
DIN 28179

After the bending, which is a cold processing, heat treatment of the bending portion can be requested.
Pantani Divisione Tubi is equipped with two heat treatment machines and a nitrogen generating machine, which is used especially in the treatment of stainless steel tubes to protect their inner surface. Upon request, it is possible to carry out a pickling process or mechanical removal of browning after the heat treatment.

The following table shows the tube dimensions for which heat treatment can be carried out:

Tube Diameter	Wall Thickness	Center-to-Center Distance
9.52 / 31.75 mm 0.37 / 1.25 in	0.70 / 3.40 mm 0.027 / 0.133 in	Max. 2300 mm 90.55 in

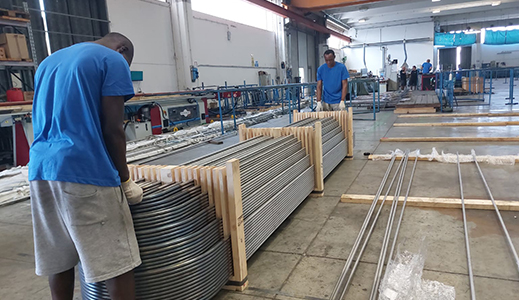

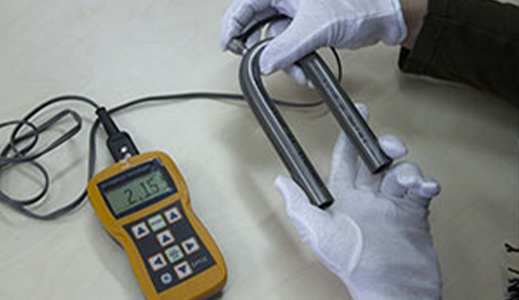

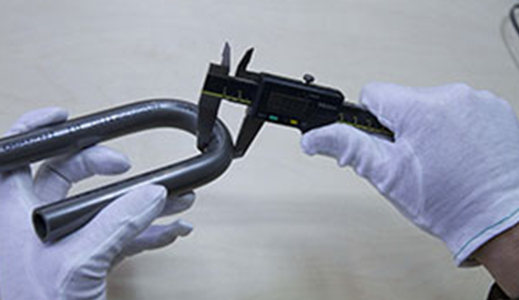

Visual and Dimensional Checks

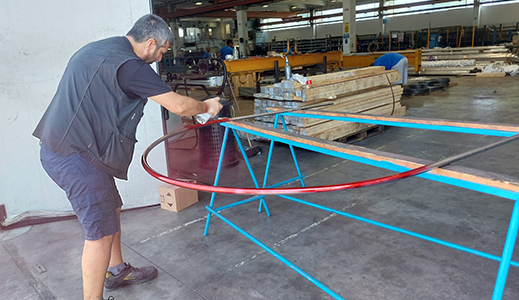

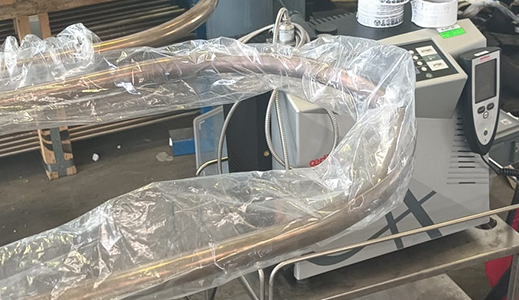

Non-destructive Testing after Bending
Destructive Testing

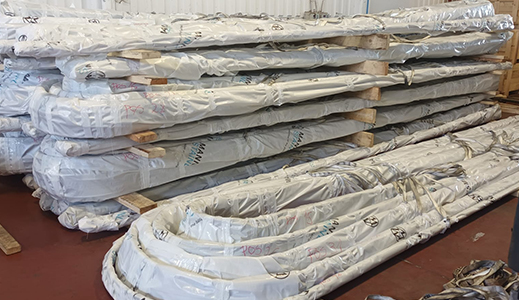

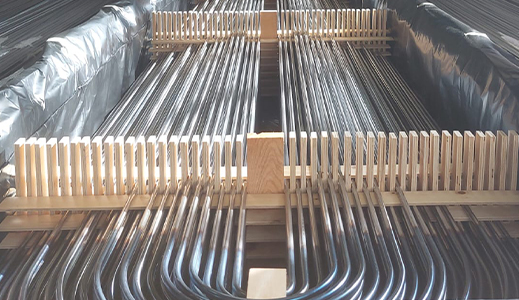

Packaging
