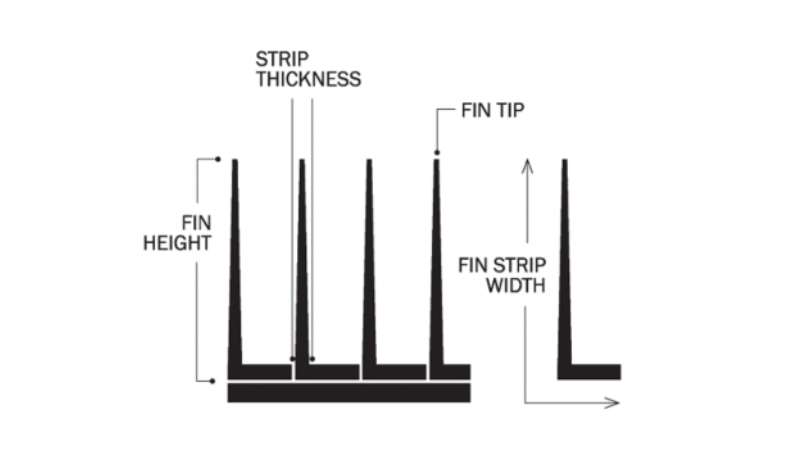

L FIN

In L-type fin, the strip material undergoes a controlled deformation under tension to achieve optimal contact pressure of the fin foot on the base tube, so as to improve heat transfer properties.

The L-shaped fin foot greatly increases protection of the base tube from corrosion.

Operating temperature: 130°C.




L FIN
Valtecno
Tube Material Wall Thickness Tube Diameter Tube Length
All types Min. 0.9 mm
0.035 in		 15.88 / 50.80 mm
0.625 / 2 in		 Max. 18500 mm
728 in
Fin Strip Material Fin Strip Thickness Fin Pitch Production Capacity
Aluminum From 0.4 to 0.5 mm
From 0.015 to 0.019 in		 From 8 to 11 fins/inch 9000 m per day

Applications

G, L, LL or KL finned tubes are used in air coolers, heat exchangers and manufacturing plants in general.

Packaging

We offer different packaging solutions in order to meet your needs:
  • ISPM 15 wooden crates
  • wooden cages
  • industrial wire baskets
